Home > Products > Induction heating furnace > Closed water cooling tower

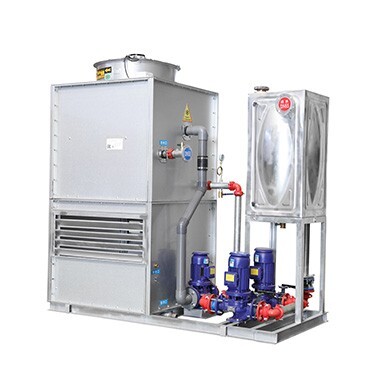

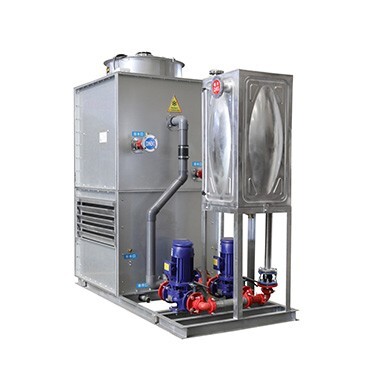

Closed water cooling tower

  • Cooling water: Soft water
  • Cooling water quantity: 10T-80T
  • Control mode: intelligent control

Video:

Application:

The closed cooling tower is mainly used to provide a cooling effect on high-power heating elements and furnace induction coil, so as to ensure the normal operation of the equipment.

Product Features:

  • 1. Use demineralized water as the coolant, do not contact with air, and do not deteriorate and scale, to ensure the best cooling effect.
  • 2. Low loss of circulating water
  • 3. There is a water collector on the spray system for water collection and fog collection with less water consumption.
  • 4. Convenient disassembly and assembly, low operation costs, and low maintenance costs.
  • 5. Compact structure, small land occupied, and convenient installation.
  • 6. Less quick-wear parts, low failure rate, and convenient maintenance.
  • 7. Intelligent control, energy saving, and environmental protection

Specification:

Specification and Technical Parameter
Model m³/h KCAL./h Net weight(Kg) Dimension
ZXZ-N10T 10 50000 450 2200*1050*2500
ZXZ-N15T 15 75000 580 3200*1030*2600
ZXZ-N20T 20 100000 680 3200*1030*2600
ZXZ-N30T 30 125000 740 3400*1140*2600
ZXZ-N40T 40 200000 880 3400*1140*2600
ZXZ-N50T 50 250000 1100 3400*1400*2600
ZXZ-N60T 60 300000 1250 3500*1400*2600
ZXZ-N70T 70 350000 1500 3500*1720*2600
ZXZ-N80T 80 400000 1700 3500*1720*2600
